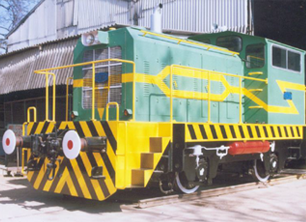

2 Axle Locomotive WHD 335 45

Technical Data:

Model:WHD 335 45

Service:Shunting

Rail Guage:1676mm

Axel Classification: O - B - O

Over All Dimensions(mm): L=7800, W=3100, H=4100

Nominal Axle Load(±3%) :22.5t

Adhensive/Total Weight:45t

Tractive Effort at Start:13500kg

Maximum Geared Speed:15kmph

Wheel Diameter:914 mm

Fuel Tank Capacity: 1000Ltrs

Installed Power:335hp (250kw)

Transmission: Hydrodynamic Turbo Reversing

LOAD THAT CAN BE STARTED AND HAULED (IN TONNES)
SPEED
Track Condition Starting MCRS 4.5 Km/hr 10 Km/hr 15 Km/hr
Level 2550 2550 2380 1190
1 In 400 Gradient 1700 1700 1105 510
8 Deg Curve 1870 1870 1445 680
