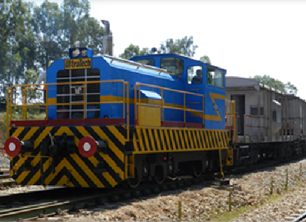

Radio Remote Control Locomotive

Technical Data:

Model:WHD 600 75 RC

Service:Shunting

Rail Guage:1676mm

Axel Classification:O - C - O

Over All Dimensions(mm): L=8800, W=3100, H=4100

Nominal Axle Load(±3%) :25t

Adhensive/Total Weight:75t

Tractive Effort at Start:22500kg

Maximum Geared Speed:18.8kmph

Wheel Diameter:914 mm

Fuel Tank Capacity: 1000Lit per Loco

Installed Power:600hp (448kw)

Transmission: Hydrodynamic TurboReversing

LOAD THAT CAN BE STARTED AND HAULED (IN TONNES)
SPEED
Track Condition Starting MCRS 5.6 Km/hr 10 Km/hr 15 Km/hr 18.8 Km/hr
Level 4280 4280 4280 2470 1564
1 In 400 Gradient 2875 2875 2122 1242 822
8 Deg Curve 2620 2620 2030 1158 780
