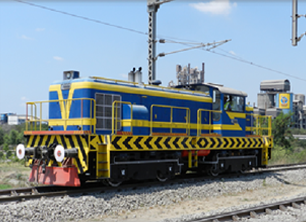

4-Axle Bogie Locomotive

Technical Data:

Model:WHD 800 90

Service:Shunting

Rail Guage:1676mm

Axle Classification:B'- B'

Over All Dimensions(mm): L=12000, W=3100, H=4100

Nominal Axle Load(±3%) :22.5t

Adhensive/Total Weight:90t

Tractive Effort at Start:27000kg

Maximum Geared Speed:21kmph

Wheel Diameter:914 mm

Fuel Tank Capacity: 2000Ltrs

Installed Power:800hp (597kw)

Transmission: Hydrodynamic Turbo Reversing

LOAD THAT CAN BE STARTED AND HAULED (IN TONNES)

SPEED
